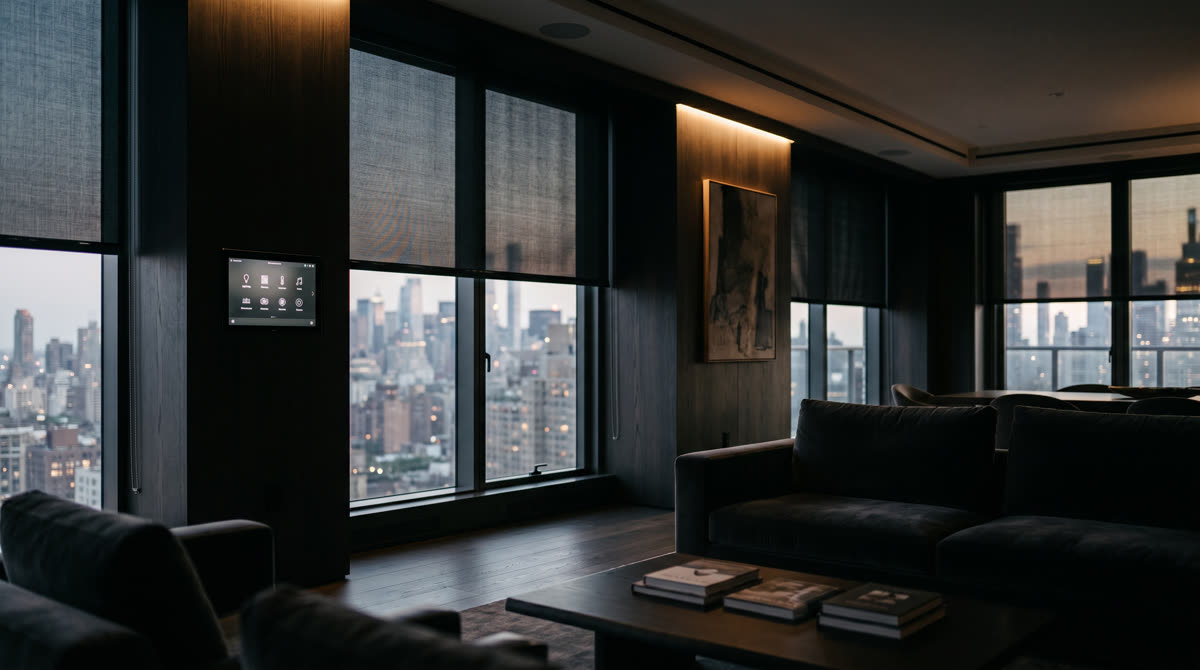

Quick Answer: Manhattan penthouse AV systems require invisible integration within architecturally significant spaces: in-wall and in-ceiling speakers, concealed equipment racks behind paneling, motorized art-lift displays, and Crestron control accessible from a single touchpanel or iPad. Restrepo Innovations has completed multiple full-floor and penthouse AV installations in Manhattan with zero visible technology footprint.
Manhattan high-rises were not built with AV integrators in mind. The conduit runs that exist serve the building’s electrical and data infrastructure. not a private residence layering in motorized shades, distributed audio, whole-home control, and enterprise-grade networking. When a penthouse client approached us for a full system installation in a new-construction tower on the Upper West Side, we understood what we were working with before we ever stepped on site.
No conduit access between floors. Shared risers that could not be penetrated. A mechanical room the size of a closet. Concrete slabs between every level. This is the reality of high-rise residential work, and it shapes every decision from equipment selection to installation sequence.
<.-- BEGIN newsletter inline block (proxy v2) --> <.-- END newsletter inline block (proxy v2) -->Infrastructure First, Always
The penthouse occupied two levels connected by an internal stair. Before any equipment was specified, we mapped every wall cavity, identified which slab penetrations were feasible through the developer, and designed a pathway strategy for getting low-voltage cabling from level to level without disturbing finishes. In a conventional home, you pull wire through open framing. Here, we used a combination of thin-wall surface raceway (concealed behind millwork in service areas), existing HVAC chases, and one negotiated sleeve through the slab at a location the general contractor approved during the final construction phase.
The central rack lives in a custom-built millwork cabinet in the utility corridor. At approximately 12 rack units of usable space, it is the smallest footprint we have ever designed a full penthouse system into. Every device was selected for its 1U or 2U form factor, and the thermal management plan was engineered to keep operating temperatures within spec in a confined, poorly ventilated space. Heat management in a rack this compact is the same engineering challenge we describe in our post on what rack day actually looks like. just compressed further.
Control and Audio Without the Infrastructure
Crestron was the obvious choice for control: the TSW-770 touchpanels at key locations, wireless Crestron remotes where wall plates were not feasible, and a Crestron Home processor handling automation logic. The programming integrates with the building’s BMS where permitted by the building management team, giving the homeowner control of HVAC setpoints, guest access, and lighting from a single interface. For context on why Crestron is the right answer in constrained, high-stakes environments like this, see our post on why Crestron isn't expensive. bad design is.
For audio, Sonance Invisible Series speakers were the only credible option. Their in-wall and in-ceiling designs require a single stud bay or joist cavity and leave no visible footprint once the surfaces are painted. Across the main living areas, media room, and primary suite, we installed twelve Sonance driver positions powered by a Sonance multi-channel amplifier in the rack. The result is room-filling, natural-sounding audio with no visible hardware anywhere in the residence.
“The most elegant high-rise systems are the ones you cannot see. When the technology disappears into the architecture, we have done our job correctly.” __EMDASH_PROTECT_0__
Shading, Lighting, and Networking
Lutron RadioRA 3 handled the shading and lighting control throughout. The wireless protocol was essential here: no new low-voltage conduit for the shade wiring, just battery-powered Lutron Palladiom shades at every window communicating via Lutron’s proprietary Clear Connect RF protocol. The same integration ties the lighting keypads and dimmers throughout both floors. Total installation time for the Lutron system was significantly reduced versus a wired approach, with no compromise in reliability or responsiveness.
Networking was a Ubiquiti deployment: a UniFi Dream Machine Pro as the gateway, two U7 Pro access points covering both levels, and a USW-24-PoE switch in the rack. With concrete slab between floors, RF propagation was a legitimate concern. We positioned the second access point on the upper level ceiling and ran a single Cat6A cable through the approved slab penetration to feed it. Signal coverage throughout is strong and consistent, which is not the default outcome when high-rise AV projects skip the structured networking plan.
What High-Rise Work Requires
The project took longer to plan than to install. Pre-construction coordination with the developer, approval processes for any slab penetrations, building management sign-off for equipment in shared spaces, elevator reservations for materials, and noise restrictions that limited drilling hours. these are the project management realities of Manhattan high-rise work. Integrators who do not account for them end up in conflict with building staff, behind schedule, and over budget. For a broader look at high-rise residential work in the area, see our post on smart home automation in Manhattan penthouses.
The completed system operates. Single-tap scenes for entertaining, privacy, and sleep. Invisible speakers. Motorized shades on a sunrise schedule. A network that handles the household’s bandwidth without interference. None of that is visible. which is precisely the point.
Designing technology for constrained, high-value urban residences is a specific discipline. Our residential practice covers projects from Bergen County estates to Manhattan and beyond. and the planning rigor is the same regardless of the floor plan.
