What Actually Goes Into a Structured Cabling Job

Nobody photographs the cable. In the world of luxury AV and home automation, the content that gets shared. the sleek Crestron touchpanels, the consistent 4K projector drops, the whole-home audio that seems to materialize from thin air. all of it rests on a foundation that gets installed weeks before any of those pieces arrive on-site. Structured cabling is the invisible craft that makes everything else possible, and it’s the one part of the job where there is absolutely no going back.

Home Runs vs. Daisy-Chain, and Why It Matters

Structured cabling, at its most basic, is the practice of running dedicated cable paths from every device location in a home back to a central distribution point. typically a network rack or equipment room. This is called a “home run” topology, and it stands in direct contrast to daisy-chaining, where devices are connected in series from one to the next.

The distinction isn’t just academic. A daisy-chained network is efficient to install but fragile to operate: one bad connection anywhere in the chain can take down every device downstream. Home runs are more material-intensive and more labor-intensive, but every device has a direct, isolated path back to the core. When something stops working, you know exactly where to look. For a home where a single automation rack may be managing security cameras, distributed audio, a Crestron control system, a 4K video distribution matrix, and a gigabit network. all simultaneously. the home run model isn’t optional. It’s the only way to build a system that performs reliably for decades. This is the foundation behind our post on the hidden cost of poor infrastructure. the cable in the wall determines what is possible long after the project is done.

Category rating matters just as much. We specify Cat6A as our standard for new construction, stepping up from the more common Cat6. The “A” designation. augmented. means the cable is rated for 10-gigabit speeds up to 100 meters and is shielded against alien crosstalk from adjacent cables. In a dense installation where dozens of runs are bundled together through the same framing bays, alien crosstalk is a real problem. Cat6A eliminates it. The cost difference between Cat6 and Cat6A is relatively small; the performance and longevity difference is significant.

The Pre-Wire Phase: Working Inside the Walls

The best time to run cable is during the framing stage of new construction. after the studs are up but before drywall closes everything in. This window is often measured in weeks, and coordinating around it is one of the more logistically demanding parts of the job. We work directly with the general contractor to get on the schedule at the right moment, and we coordinate with the electrical subcontractor to ensure our low-voltage pathways don’t conflict with the line-voltage runs. They don’t share conduit. They don’t cross without clearance. Code compliance and signal integrity both demand it.

During the pre-wire, every outlet location, every speaker rough-in, every display wall plate, every camera position, and every network drop gets a dedicated cable pulled back to the equipment room. On a large custom home. say, 8,000 square feet with a home theater, a dedicated music system, outdoor speakers, a full security camera array, and a Crestron-controlled lighting system. the cable count can exceed 200 individual runs. Managing that volume cleanly requires a disciplined process from the first pull. Getting this coordination right requires the same advance planning we describe in our post on conduit planning. the detail everyone skips.

Labeling, Documentation, and Patch Panel Termination

Here is where structured cabling becomes more craft than construction. Every single run gets labeled at both ends before drywall closes. Not a generic tag that says “speaker” or “CAT6”. a specific, systematic label that tells you exactly what room, what location, and what device that run serves. We document every run in a spreadsheet: room, device type, cable type, run length, label ID. That document becomes the reference guide for every future service call, every upgrade, every troubleshooting session for the life of the house.

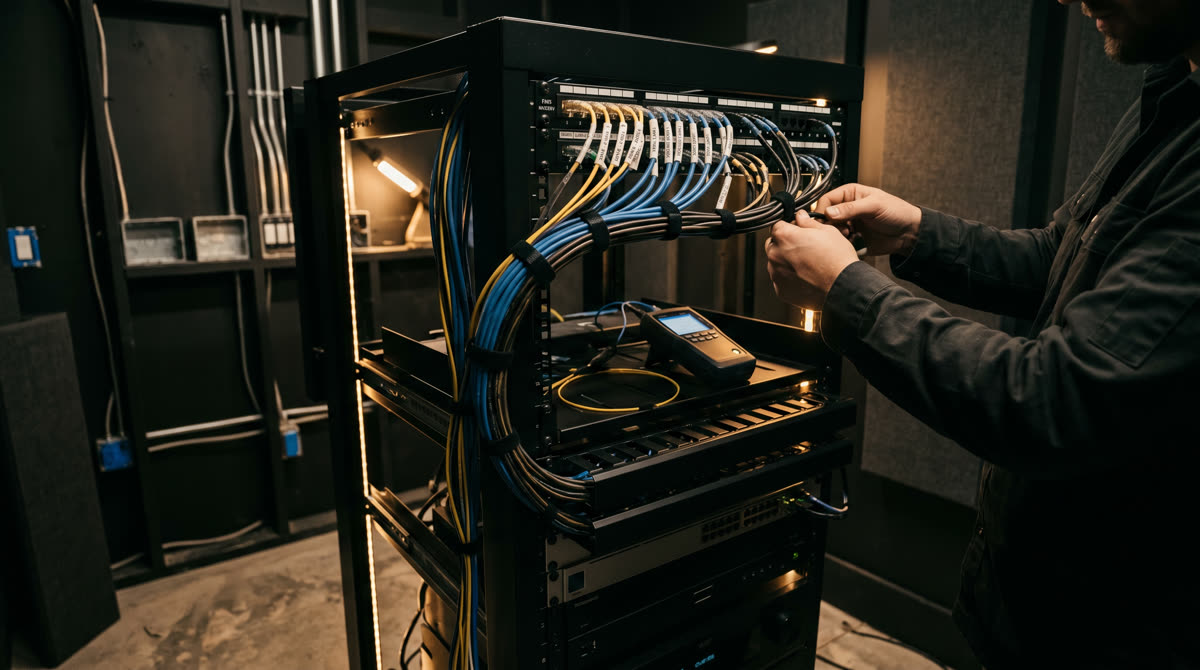

After the drywall is in and paint is complete, we return to terminate. Each cable gets punched down or terminated at the patch panel, dressed neatly in the rack, and every run gets tone-tested. Tone testing. using an inductive amplifier to trace a signal from one end of a cable to the other. confirms continuity on every pair in every run. We don’t assume a cable that was pulled clean is good. We verify it. On larger jobs, we also run full certification tests on Cat6A runs using a Fluke DSX cable analyzer, which certifies each run to TIA-568 standard and produces a pass/fail report for every link.

“The cable behind the wall is the one thing you can never upgrade after the house is built. We treat every pull like it’s permanent — because it is.” __EMDASH_PROTECT_0__

Why the Cable Determines Everything Downstream

A $500,000 home theater is only as good as the HDMI and speaker cable behind the walls. A Crestron system with custom programming and a premium touchpanel fleet is only as reliable as the Cat6A network it rides on. We have seen systems built by others fail not because the processors were wrong or the programming was flawed, but because the cable was run carelessly. stapled too aggressively, bent past its minimum bend radius, terminated sloppily, or simply mislabeled so that no one could trace a fault without tearing into finished walls. It is also part of why cheap AV installations cost more long-term. substandard cable work is the most common hidden liability.

The clients who commission our work never see the pre-wire phase. They are not standing in the framing watching cable get pulled. But the quality of that invisible work is what determines whether their system works flawlessly for twenty years or becomes a recurring service headache. Getting it right behind the walls is, in many ways, the most important thing we do. and the part we take most seriously.

If you’re planning a new build or a major renovation and want to make sure the infrastructure is done right from the start, reach out to our team. The best time to have this conversation is before the framing crew leaves the site.
