Lighting Fixture Types: Cove, Recessed, Linear, Pendant

A lighting plan that specifies only recessed downlights is not a lighting design. it is an electrical diagram. Recessed downlights alone produce an even, directionless wash that reveals no texture, creates no mood, and makes expensive finishes look flat. The fixture types in the architectural lighting toolkit each solve specific problems, and combining them is what produces spaces that look and feel designed.

This guide explains when to use each major fixture type, common mistakes in their application, and room-by-room recommendations for luxury residential projects.

Cove and Indirect Lighting

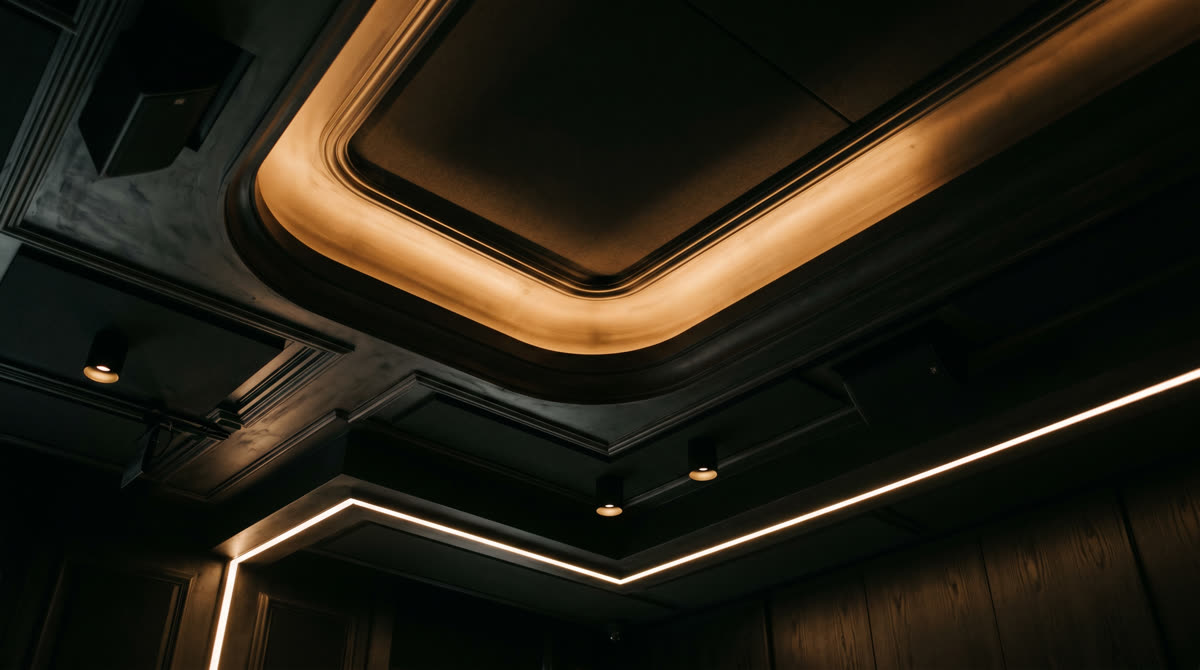

Cove lighting conceals the light source inside an architectural element. a ledge, a tray ceiling detail, a soffit. and directs light upward onto the ceiling or outward onto a wall. The result is soft, diffuse, indirect ambient illumination with no visible source and virtually no glare. Cove lighting is a foundational element of high-end residential lighting design for exactly this reason: the perceived source is the ceiling itself, not a visible fixture.

Technical requirements: Cove lighting is almost universally executed with LED strip (linear) products. The strip must be positioned, aimed, and shielded so that neither the LED elements nor the direct light beam is visible from any normal viewing angle. This requires careful attention to cove geometry: the shield depth, the distance of the strip from the reflective surface, and the beam angle of the strip all affect uniformity and whether hot spots appear. Poorly executed cove lighting reveals itself as a bright band near the light source with falloff toward the room center; well-executed cove appears as even luminance across the entire ceiling plane.

Best applications: Living rooms; master bedrooms; dining rooms; hallways with ceiling height above 9 feet; any space where ambient light without visible source is the objective.

Recessed Downlights

Recessed downlights are the most versatile fixture type in residential lighting: they can serve ambient, task, and accent roles depending on beam angle selection and placement. A wide flood (60° beam) placed on a 4-foot grid provides ambient fill; a tight spot (15° beam) aimed at an artwork piece provides accent lighting; a medium flood (36°) over a kitchen island provides task lighting.

The most common mistake: Using recessed downlights as the only light source. This produces the “cave effect”. a room uniformly lit from above with no wall illumination, no texture revelation, no depth. The solution is not to eliminate recessed downlights but to layer them with cove, sconce, and accent sources that provide visual interest and wall brightness.

Trim selection matters: Flush trim, lensed trim, baffled trim, and reflector trim each produce different distributions and glare characteristics. For high-CRI applications, specify trims that maximize aperture while controlling direct glare. Deep-baffle trims that conceal the source produce the cleanest look in exposed, high-ceiling spaces.

Best applications: Kitchen task lighting; bathroom vanity areas; entry halls; utility spaces; accent positions with adjustable-aim trims.

Linear and Strip Lighting

Linear LED fixtures. strip tape and extruded aluminum channel profiles. produce continuous line output that is invisible at normal viewing distances when installed in millwork, cabinetry, stairs, or cove details. The versatility of linear LED is unmatched: the same product category serves under-cabinet task lighting, cove fill, stair tread marking, wine cellar display, and toe-kick wayfinding.

Specification discipline required: Linear LED products vary enormously in quality. For luxury residential applications, specify: high-density strip (minimum 140 LEDs per meter) to avoid visible dot pattern at close range; CRI 90+, R9 50+; constant-current drivers with PWM dimming at 2000+ Hz to avoid flicker visible on camera; and extruded aluminum channel with diffuser lens for heat management and light quality. Budget-grade strip tape without channel diffusion will look like consumer product; it has no place in a luxury project.

Best applications: Under-cabinet task lighting; cove fill; stair tread lighting; millwork highlighting; display cases; outdoor step and path lighting (with appropriate IP rating).

Pendant Fixtures

Pendants serve dual roles: they provide task or ambient light at an intermediate level (below the ceiling, above the work surface or seating), and they serve as decorative focal points that anchor a space compositionally. Over a kitchen island, a pendant provides task illumination and defines the workspace. Over a dining table, a chandelier or pendant grouping sets the room’s design tone.

Ceiling height rule: A pendant over a dining table should hang 30–36 inches above the table surface. Over a kitchen island, 30–36 inches above the counter. These rules assume 9-foot ceilings; scale up proportionally for higher ceiling rooms. Getting this wrong is the most visible mistake in residential interior lighting. too high and the fixture looks disconnected; too low and it is a head hazard.

Dimming compatibility: Pendant fixtures containing LED sources must be specified with dimmer-compatible drivers. Decorative pendants using Edison-style LED filament lamps are generally ELV or TRIAC compatible and dim well. Pendants with integrated LED arrays require checking driver compatibility with the specified dimming protocol.

Sconces

Sconces provide mid-height illumination that warms walls and creates depth that ceiling sources alone cannot achieve. A well-placed sconce in a hallway creates pools of warm light that make the corridor feel intimate rather than institutional. In a bedroom, bedside sconces eliminate bedside table lamps while putting light exactly where reading requires it without spilling onto a sleeping partner.

Monopoints and Adjustable Accent Fixtures

Monopoints are ceiling-mounted, single-fixture accent heads that provide fully adjustable directional light output. They are the primary tool for artwork accent, sculpture highlight, and architectural feature emphasis. Unlike adjustable recessed downlights (which are limited by the can housing), monopoints on surface or suspended mounting systems can aim at nearly any angle and height.

Aiming protocol: Artwork accent lighting targets the center of the piece at a 30° angle from vertical (not directly overhead). This geometry minimizes veiling glare on the art surface while creating maximum visible contrast between lit and unlit areas. Deviation from this angle requires aperture adjustment to maintain the intended effect.

For the full framework on how these fixture types combine into a complete layered system, see our luxury lighting design hub. For outdoor fixture types in landscape lighting, see our post on landscape lighting zones and control. For the protocols that control these fixtures, see our guide to 0-10V vs DALI vs DMX.
